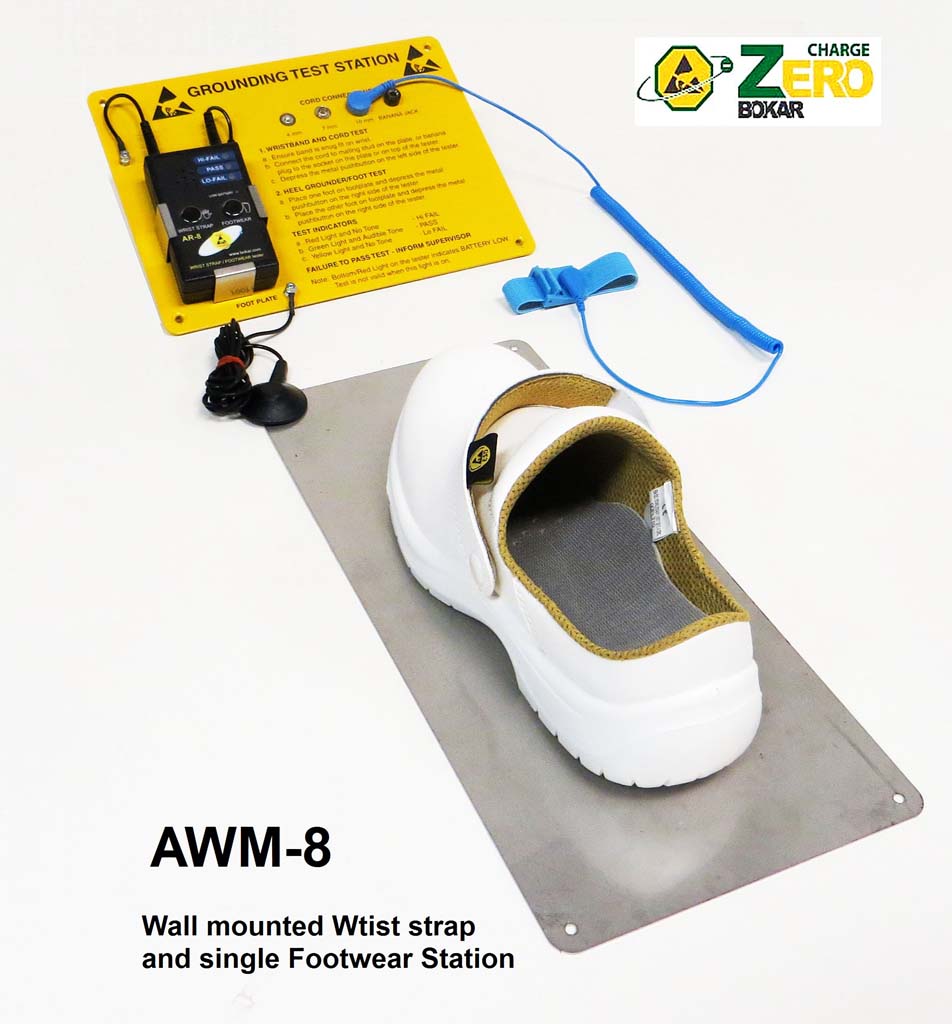

AWM-8DL - Wall Mounted Wrist Strap and Footwear Tester with AC switch for external Door Lock

Product Description:

The Wall Mounted Wrist Strap and Footwear Tester with AC switch for external Door Lock was designed to provide low cost alternative to assure presence of properly protected personnel in ESD safe areas. The AR-8DL Control unit has built-in AC switch which can handle up to 4A of current. The switch can be pre-programmed to close the door lock circuit in one of three possible modes of operation:

Mode A: when the wrist strap test is within the specifications limits and checks "pass"
Mode B: when footwear (heel strap) is within the specifications limits checks "pass"
Mode C: when both wrist strap and footwear are within the specifications limits and both check "pass"

Features

Two in one instrument to check both wrist straps and footwear.
Extremely easy to use. Just move your finger from wrist strap button to footwear button to complete the test (without a need to remember to change a position of an additional switch from one measurement to the other like with other manufacturers units).
Built using SMT technology for reliability.
Microprocessor controlled for accuracy.
Dependable and simple.
Pass tone is easy to hear.
Visual indicators to show pass, low or high fail and low battery condition.

The wrist strap and footwear tester system was created to fill a growing demand for a dependable, low cost and easy-to-use test mechanism for personnel grounding devices. It is available as AWM-8DLUS Tester, (U.S. standards) a 750-kohms to 10-Mohms range for wrist straps and 750kohms to 100Mohms range for footwear and AWM-8DLE Tester (European standards) a 750-kohms to 35-Mohms range for both wrist straps and footwear.

System includes

AR-8DL Wrist and Footwear Tester with built-in AC switch and 9V battery
AWM-WP - Wall mounted plate with test instructions
AWM- FP - Foot plate
A-FM9-0 - Zero ohms grounding wire
Manual and Warranty Card

Note: Wrist Strap not included with the System

AR-8DL Wrist and Footwear Tester with built-in AC switch and 9V battery

Technical specifications

	AR-8DLUS (U.S. Parameters)		AR-8DLE (European Parameters) For both wrist straps and foot wear
	Wrist Straps	Foot wear
Pass Level	750 kohm-10 Mohm; green light and audible tone	750 kohm-100 Mohm; green light and audible tone	750 kohm-35 Mohm; green light and audible tone
Low Fail	< 750 kohm; yellow light no tone	< 750 kohm; yellow light no tone	< 750 kohm; yellow light no tone
High Fail	> 10 Mohm; red light no tone	> 100 Mohm; red light no tone	> 35 Mohm; red light no tone

AWM-8DL Connection diagram

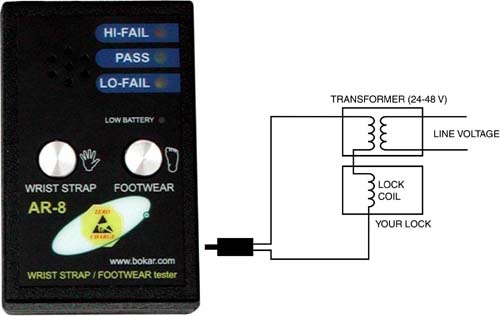

AWM-8L Connection diagram
